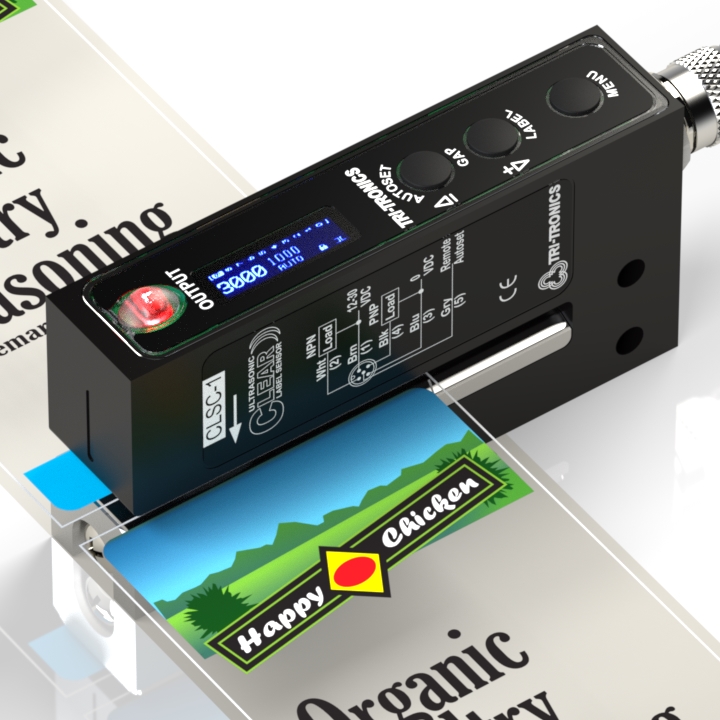

The first Ultrasonic Clear Label Sensor with OLED graphic display for monitoring sensor performance. Designed into the sensor are all the Ease-of-Use characteristics that have made TRI-TRONICS' sensors so well known in the industry.

Ultrasonic technology coupled with digital signal processing makes the detection of clear and opaque labels on clear or opaque backing material easy. The introduction of the OLED graphic display in place of simple indicator lights offers the user has an unprecedented view of the sensor's performance, options, program modes, and helpful simple instructions never before offered in a clear label sensor. A stainless steel removable gap plate and anodized aluminum housing makes this sensor rugged. Setup is fast with one press of a button for the label and one press for the label gap.

CLS

Features
Specifications
Dimensions
Models & Ranges
Applications
Downloads

ADVANCED DIAGNOSTICS
Dual numerical OLED display provides feedback of current signal strength, threshold value, option status during normal operation. Sensor perameters, options and program modes are displayed during setup. You can even monitor performance with our unique Sensor Scope or view the quick reference.

MULITPLE SETUP MODES
Sensor can be setup under dynamic conditons where label matereial is moving through the gap or in a static state where control over material indexing is available.

AUTO ADJUST
applications were sensing conditions are changing due to dusty enviroments or material thickness is varing, auto adjust will automaticly adjust the sensor to the right setting.

TIMERS
Four timer modes are offered as Advanced Options. This feature provides users with the option to condition the output specifically for the application requirement.
Off Delay: Extends the Output Time.
On Delay: Extends the Input Time.
One Shot: Provides a defined Output "On" Time.
Debounce: Provides an Anti-Chatter timer.

Ultrasonic Clear Label Sensor

Features and Options:

OLED Alphanumeric Display
10 Bar Graphic Contrast Indicator
Static and Dynamic Numerical Display
One button AUTOSET (Gap Set)
Tweak-able (Momentary Up/Down Adjustable)
Various Timers
Cable and Connector Version (M12 and M8)
Removable Stainless Steel Gap Plate
High Speed (200µs) (1800ft/548M) per minute)
Durable and Robust Anodized Aluminum Housing
Compatible with Existing Mounting Configurations

Benefits:

Easy to Setup
Highly Accurate and Precise
Low Maintenance
Afforable, Low-Cost Option
Made in USA
Durable and Reliable

SUPPLY VOLTAGE

12 to 30 VDC
Polarity Protected

Note: For use in Class 2 Circuits

CURRENT REQUIREMENTS

95mA @ 12 VCD, 45mA @ 30 VCD

DIGITAL OUTPUTS

(1) NPN and (1) PNP open collector output 150mA Max; <2V Residual Voltage (Note: Dependent on Model).
All outputs are continuously short circuit protected

REMOTE AUTOSET INPUT

Momentary sinking or sourcing input; 1.2mA max; Software Selectable

DIAGNOSTIC INDICATORS

OLED Graphic Display – Includes Contrast Indicator, Numerical Display, Set Point and Trigger Point, and all sensor options and modes.
Red LED Output Indicator– Illuminates when the sensor’s output transistors are “ON”.

Note: If Output LED flashes, a short circuit condition exists.

PUSHBUTTON CONTROL

Three (3) push button controls
Gap (for Gap AUTOSET)
Label (for difficult or inconsistent webs)
Menu (for accessing Options and Program Modes)

HYSTERESIS

Dynamic – adjusted by AUTOSET

RESPONSE TIME

200μs

REPEATABILITY

125μs

AMBIENT TEMPERATURE

4°C to 50°C (39°F to 122°F)

RUGGED CONSTRUCTION

Chemical resistant, high impact Aluminum housing
Waterproof ratings: NEMA 4X, 6P and IP65
Conforms to heavy industry grade CE requirements

THRESHOLD SET

1-Point, 2-Point, or Dynamic AUTOSET; manually or remotely.

OUTPUT TIMERS

ON-Delay, OFF-Delay, One Shot, or Debounce. Software Selectable

CONNECTOR

M12 5-Pin, M8 4-Pin, or 6ft. Shielded Cable

Features and Options:

OLED Alphanumeric Display
10 Bar Graphic Contrast Indicator
Static and Dynamic Numerical Display
One button AUTOSET (Gap Set)
Tweak-able (Momentary Up/Down Adjustable)
Various Timers
Cable and Connector Version (M12 and M8)
Removable Stainless Steel Gap Plate
High Speed (200µs) (1800ft/548M) per minute)
Durable and Robust Anodized Aluminum Housing
Compatible with Existing Mounting Configurations

Benefits:

Easy to Setup
Highly Accurate and Precise
Low Maintenance
Afforable, Low-Cost Option
Made in USA
Durable and Reliable

Drawing

Features and Options:

OLED Alphanumeric Display
10 Bar Graphic Contrast Indicator
Static and Dynamic Numerical Display
One button AUTOSET (Gap Set)
Tweak-able (Momentary Up/Down Adjustable)
Various Timers
Cable and Connector Version (M12 and M8)
Removable Stainless Steel Gap Plate
High Speed (200µs) (1800ft/548M) per minute)
Durable and Robust Anodized Aluminum Housing
Compatible with Existing Mounting Configurations

Benefits:

Easy to Setup
Highly Accurate and Precise
Low Maintenance
Afforable, Low-Cost Option
Made in USA
Durable and Reliable

CLS-1 - Cabled. Advanced timer. 12-30 VDC polarity protected.
CLSC-1 - M12 5-pin connector. Advanced timer. 12-30 VDC polarity protected.
CLSC-1M8 - M8 4-pin connector, Single Output with Remote Set. Advanced timer. 12-30 VDC polarity protected.
CLSC-1M8LE - M8 4-pin connector, NPN and PNP Output. Advanced timer. 12-30 VDC polarity protected.

Features and Options:

OLED Alphanumeric Display
10 Bar Graphic Contrast Indicator
Static and Dynamic Numerical Display
One button AUTOSET (Gap Set)
Tweak-able (Momentary Up/Down Adjustable)
Various Timers
Cable and Connector Version (M12 and M8)
Removable Stainless Steel Gap Plate
High Speed (200µs) (1800ft/548M) per minute)
Durable and Robust Anodized Aluminum Housing
Compatible with Existing Mounting Configurations

Benefits:

Easy to Setup
Highly Accurate and Precise
Low Maintenance
Afforable, Low-Cost Option
Made in USA
Durable and Reliable

Applications:

Clear Label Application	Heat Seal Detection	High Speed Rewinding... Clear, Metal Foil or Paper Labels
Fold or Crease Detection	Double Sheet Detection	Splice Detection

Videos:

Instructional
Overview & Applications	Set up & Autoset
Changing Options
Applications
Machine Demo - Clear and Opaque Labels
Marketing
Pack Expo 2012 Clear Label and Label-Eye Sensors
