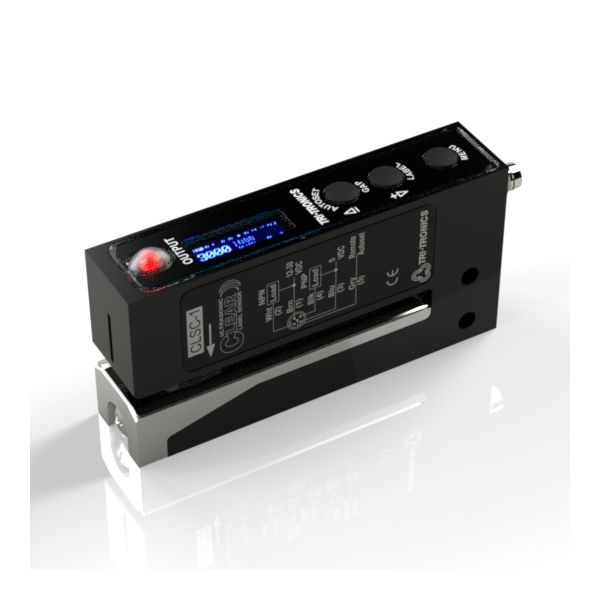

CLSC-1M8

Adjustment Type:

• Push Button

Connection Type:

• Connector, 4-pin M8

Housing Type:

• Fork

Supply Voltage:

• 12 to 30 VDC
• Polarity Protected

Current Requirements:

• 95mA @ 12 VDC, 45mA @ 30 VDC

Digital Outputs:

• (1) NPN and (1) PNP open collector output 150mA Max; (Note: On CLSC-1M8, NPN & PNP are software selectable.)
• All outputs are continuously short circuit protected

Response Time

• 200μs

Remote AUTOSET Input:

• Momentary sinking or sourcing input;
  1.2mA max; Software Selectable

Diagnostic Indicators:

• OLED Graphic Display - Includes Contrast Indicator, Numerical Display, Set Point and Trigger Point, and all sensor options and modes.
• Red LED Output Indicator– Illuminates when the sensor’s output transistors are “ON”. Note: If output LED flashes on power up, a short circuit condition exists.

Push Button Control:

• Three (3) push button controls
• Gap (for Gap AUTOSET)
• Label (for multi-layered labels)
• Menu (for accessing Options)

Hysteresis:

• Dynamic – adjusted by AUTOSET

Ambient Temperature:

• -4°C to 50°C (39°F to 122°F)

Rugged Construction:

• Chemical resistant, high-impact aluminum housing
• Waterproof ratings: NEMA 4X, 6P and IP65
• Conforms to heavy industry grade CE requirements

Threshold Set:

• 1-Point, 2-Point, or Dynamic AUTOSET; manually or remotely.

Threshold Adjust

• Manual or AUTO Adjust

Output Timers:

• On Delay, Off Delay, One Shot, or Debounce (Advanced Option, software selectable).
