CW-10P
Color Sensors
Registration Mark Sensors
ColorWise
Principle of Optical Operation:
Color
Max Sensing Range:
10mm
Light Source:
Blue/Green/Red LED
Switching Output:
PNP
Connection:
Cabled, 6ft
Catalog Number:
40519
$354.00
Color & Registration Mark Sensor
The CW-10P is a CW Series Color Sensor with a 10mm sensing range and a PNP output. This sensor is designed to detect and differentiate colors accurately in industrial applications, making it suitable for tasks like color verification, quality control, and registration mark detection.
Key Features & Benefits
Color Sensing: Detects and differentiates colors with high precision and is ideal for applications requiring accurate color recognition, such as verifying labels or ensuring product consistency.
Registration Mark Sensing:Designed to detect printed registration marks on continuous webs at high speeds and ensures precise alignment and synchronization in printing and packaging processes.
Advanced Technology:Configurable modes for both color and registration mark sensing and works reliably even in challenging environments with web flutter or variable lighting.
User-Friendly:Simple setup and calibration with an intuitive interface and is compact and durable design for seamless integration into industrial systems
Built With Ease Of Integration In Mind
The CW-10 features intuitive setup and calibration,enabling quick deployment into existing systems. Its robust constructionwithstands challenging conditions, while its high-speedresponse ensures seamless operation in fast-paced production lines. From ensuring the proper alignment of labels to verifying color consistency in assembly processes, the CW-10 delivers dependable performance, enhancing efficiency and product quality.
Specifications
Optical
| Property | Value |
|---|---|
| Principle of operation | Color Detection |
| Detection Range (mm) | 10(±3) |
| Light source | Red/Blue/Green Composite LED |
| Wavelength (nm) | 625/470/525 (Dependent) |
| Spot Size | 1mm x 6mm (Set Distance: 10mm) |
Electrical Data
| Property | Value |
|---|---|
| Supply Voltage (VDC) | 12…24 |
| Current Requirements (mA) | ≤35(24V DC) |
| Reverse polarity protection | Yes |
Outputs
| Property | Value |
|---|---|
| Output circuit | PNP |
| Response time (µ) | Color Mark Mode 50, Color Mode 200 |
| Switching frequency (kHz) | ≤6 |
| Short circuit protection | Yes |
| Impulse overvoltage protection | Yes |
Display / Adjustment
| Property | Value |
|---|---|
| Type of Display | LED Indicator |
| Display Size (mm) | 14 × 10.7 |
| Adjustment Controls | Push Button |
| Indicator Lights | Status = Orange |
Mechanical
| Property | Value |
|---|---|
| Design | Miniature Rectangular |
| Dimensions (mm) (W x H x L) | 24 x 35 x 57 |
| Housing Material | PC |
Electrical Connection
| Property | Value |
|---|---|
| Type of connection | Flying Leads |
| No. of Leads | 4 |
Operating Conditions
| Property | Value |
|---|---|
| Ambient temperature (°C) | -10 to 50 |
| Degree of protection | IP67 |
Tests / Approvals
| Property | Value |
|---|---|
| Certifications | CE |
| UL Approvals | UL Pending |
Schematics

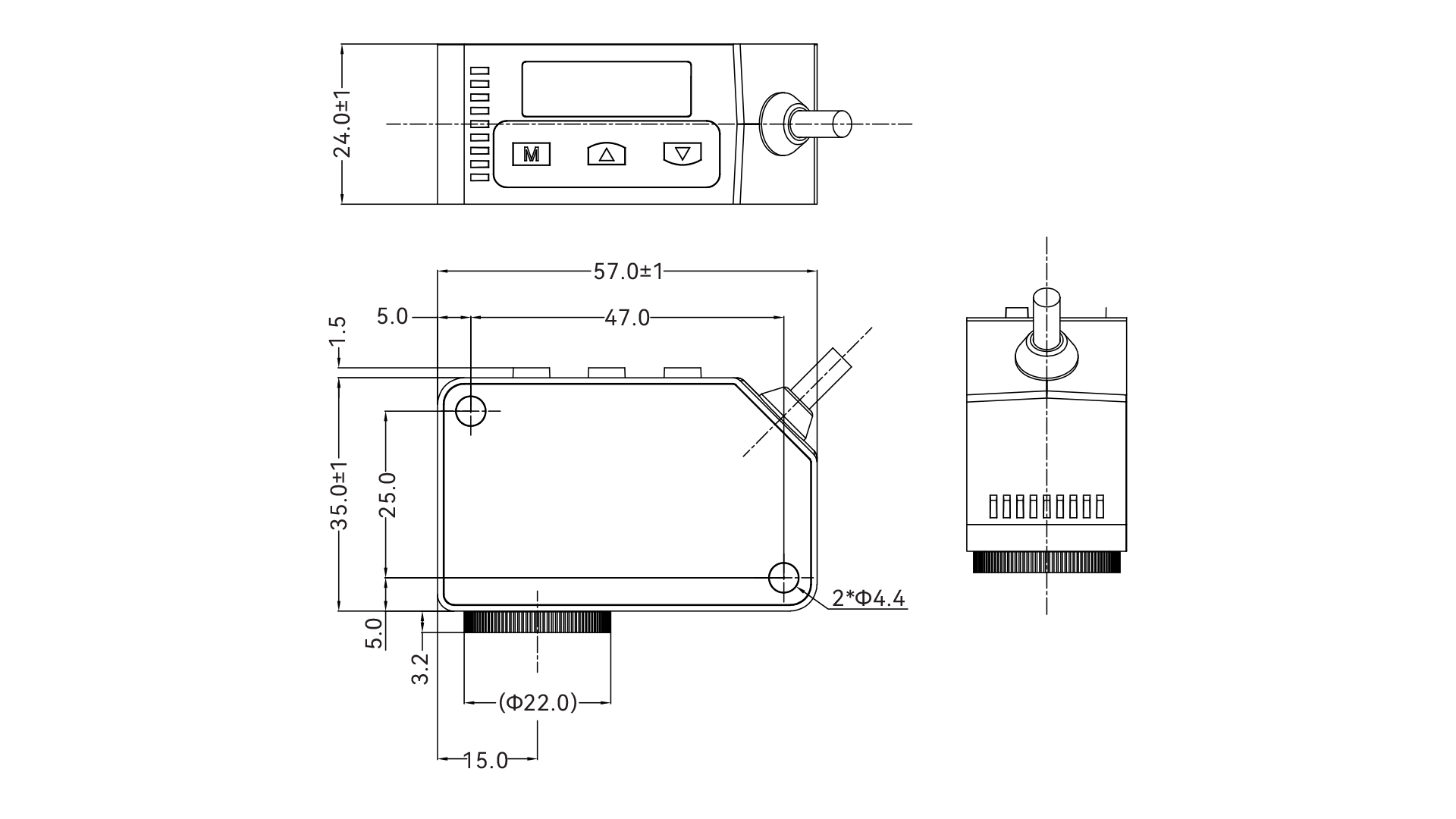

CW-10 Series Sensor Dimensions

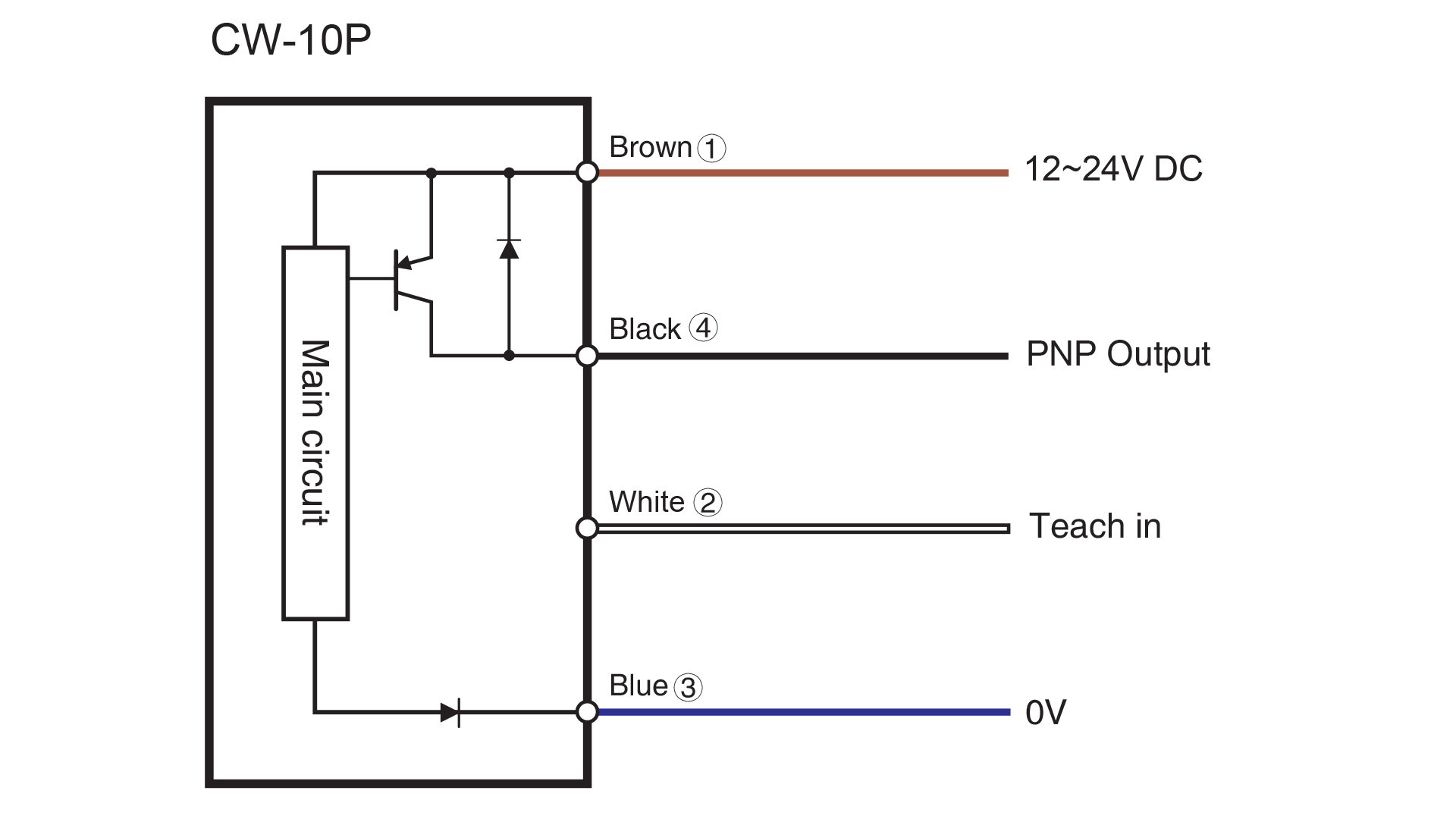

CW-10P Sensor Electrical Diagram
