SMARTEYE EZ-PRO™ General Purpose Sensor

*Name

*Company

Street

City

State

Zip/Postal code

*Country

*Email

Telephone

High performance, digital photoelectric multi-mode sensor that can be set-up by a single push of a button. There is no guess work on the part of the operator. From that point on, the sensor will automatically maintain a perfect setting, thanks to the dynamic Automatic Contrast Tracking System (ACT). The EZ-PRO™ AUTOSET routine can also be implemented from a momentary remote switch (i.e. push button or touch screen). The EZ-PRO™ is equipped with a Contrast Indicator as well as an Action Alert diagnostic indicator that allows the operator to visually substantiate performance. When the lock feature is enabled (see advanced features), the EZ-PRO™ sensor is tamper-proof. Now, the sensor will provide you with the automatic, hassle-free performance that you expect from a SMARTEYE®. It can either be side mounted or Din rail mounted. Epoxy encapsulated, it is ultra rugged and vibration proof.

EZP

Features
Specifications
Dimensions
Models & Ranges
Light Source
Optical Blocks
Applications
Downloads

ACT AUTOMATIC CONTRAST TRACKING
ACT automatically adjusts the sensor as conditions change. This can include dirty or damaged lenses, reflectors, fiberoptics or LED light source, as well as thermal drift, and target variations such as position, orientation, or color. It can also compensate for signal shift or deterioration caused by highspeed input events. The EZ-PRO continues to operate requiring far less maintenance than other sensors, making it the choice in tough sensing applications.

AGS AUTOMATIC GAIN SELECT
This unique feature provides automatic digital selection of the amplifier gain based upon your application requirements.

AUTOSET ADJUSTMENT
The AUTOSET adjustment routine only requires one finger to push one button one time! Even in a dynamic operating condition, with ongoing input events, all you have to do is push a button for a perfect setting.

EDR^®
Another unique feature, the EDR (Enhanced Dynamic Range) circuit is digitally controlled. It prevents dark state saturation and expands the operating range without reducing amplifier gain.

ACTION ALERT INDICATOR LED
This indicator provides an early warning to prevent marginal performance when the sensor can no longer provide full contrast deviation as displayed on the Contrast Indicator.

REMOTE AUTOSET
Remotely adjust the sensor from a push button momentary switch or a touch screen to PLC instantaneously. The AUTOSET routine can occur during static or dynamic operating conditions.

5-LED DUAL FUNCTION INDICATOR AND CONTRAST INDICATOR
Provides “at-a-glance” performance data during both setup and operation.

STATUS INDICATOR
Displays status of three selectable functions: Lock, Auto Trac, and Timer; 10ms, 25ms, and 50ms.

VERSATILITY
Choice of ten “quick change” optical blocks allows one sensor to be used in proximity, convergent, retroreflective, polarized retroreflective, and fiberoptic applications.

LED LIGHT SOURCES
Choice of four LED light sources — infrared, red, blue, and white light.

CONNECTIONS
Built-in connector for use with quick disconnect cable or shielded 6' (1.80 m) cable.

MOUNTING OPTIONS
Built-in DIN Rail “snap-on” design, thruhole, or bracket mount

Details

Features and Options:

AUTOSET, one button push setup
Remote AUTOSET
ACT, Automatic Contrast Tracking
Action Alert indicator
Three pulse stretchers; 10ms, 25ms, and 50ms
5-LED Contrast Indicator
Cable or quick disconnect
Interchangeable optical blocks
Button lock out
Light On/Dark On automatic select
NPN and PNP output

Benefits:

Easy to use
Reduces downtime
Robust design
High reliability
Lower inventory costs
Tamperproof

SUPPLY VOLTAGE:
10 to 30 VDC
Poalirty Protected

CURRENT REQUIREMENTS
45mA (exclusive of load)

OUTPUT TRANSISTORS:
(1) NPN and (1) PNP sensor output transistor
Sensor outputs can sink or source up to 150mA (current limited)
All outputs are continuously short circuit protected

REMOTE AUTOSET INPUT:
Opto isolated sinking input (10mA)

RESPONSE TIME:
Light/Dark state response = 300 microseconds

LED LIGHT SOURCE:
Infrared = 880nm, Red = 660nm, Blue = 480nm, White = Broadband Color Spectrum
Pulse modulated

PUSHBUTTON CONTROL:
Yellow/Blue – AUTOSET
Manual Adjustments
Set status of three options: 5) Lock, 4) Auto-Trac, 3) Timers: 10ms, 25ms, 50ms

HYSTERESIS:
“Factory-set” for high resolution – less than one bar on the Contrast Indicator

LIGHT IMMUNITY:
Responds to sensor’s pulsed modulated light source, resulting in high immunity to most ambient light, including indirect sunlight or strobes

DIAGNOSTIC INDICATORS:
5-LED bar graph functions in one of two modes:
1. Contrast Indicator – displays scaled reading of sensor’s response to contrasting light levels (light to dark)
2. Status Indicator – Displays status of 5 selectable options
Red LED output indicator = Illuminates when the sensor’s output transistors are “on.” NOTE: If Output LED flashes, a short circuit condition exists
Amber LED = Illuminates when in the options select mode
Yellow LED = Illuminates when action alert is activated. Also indicates when ACT adjusts sensor

AMBIENT TEMPERATURE:
-40°C to 70°C (-40°F to 158°F)

RUGGED CONSTRUCTION:
Chemical resistant, high impact olycarbonate housing
Waterproof ratings: NEMA 4X, 6P and IP67
Conforms to heavy industry grade CE requirements

Features and Options:

AUTOSET, one button push setup
Remote AUTOSET
ACT, Automatic Contrast Tracking
Action Alert indicator
Three pulse stretchers; 10ms, 25ms, and 50ms
5-LED Contrast Indicator
Cable or quick disconnect
Interchangeable optical blocks
Button lock out
Light On/Dark On automatic select
NPN and PNP output

Benefits:

Easy to use
Reduces downtime
Robust design
High reliability
Lower inventory costs
Tamperproof

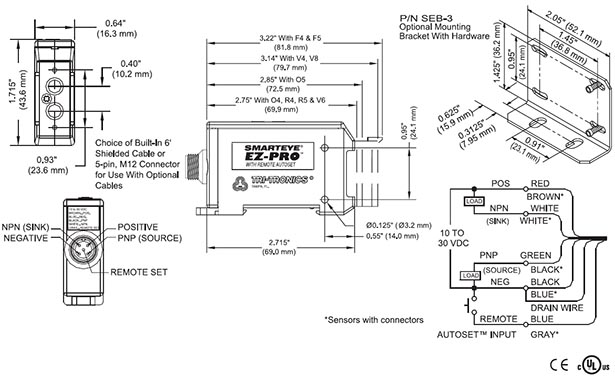

EZ-Pro Dimensions

Features and Options:

AUTOSET, one button push setup
Remote AUTOSET
ACT, Automatic Contrast Tracking
Action Alert indicator
Three pulse stretchers; 10ms, 25ms, and 50ms
5-LED Contrast Indicator
Cable or quick disconnect
Interchangeable optical blocks
Button lock out
Light On/Dark On automatic select
NPN and PNP output

Benefits:

Easy to use
Reduces downtime
Robust design
High reliability
Lower inventory costs
Tamperproof

1. Select Sensor Model based on light source required

I - Infrared
R - Red
B - Blue
WL - White

2. Select connector required

blank - Cable 6ft (1.8m)
C - Connector

3. Select Optical Block based on mode of sensing required:

F4 - Glass Fiberoptics
F5 - Plastic Fiberoptics
O4 - Proximity
O5 - Proximity
R4 - Retroreflective
R5 - Polarized Anti-Glare Retroreflective
V4 - Convergent 1" "V" Axis
V4A - Apertured
V6 - Convergent 1.5" "V" Axis
V8 - Convergent 0.5" "V" Axis

Sensing Range Guidelines

Convergent / Proximity / Retroreflective
Optical Blocks	IR	RED	BLUE	WHITE
V4, V4A	1in.	1in.	1in.	1in.
V6	1.5in.	1.5in.	1.5in.	1.5in.
V8	.5in.	.5in.	.5in.	.5in.
O4	18in.	11in.	4in.	3in.
O5	4ft.	3ft.	1.5ft.	1ft.
R4	20ft. +	18ft. +	6ft.	5ft.
R5	N/A	7ft.	4ft.	3ft.
Note: Proximity tests utilized a 90% reflective with target. Retroreflective tests utilized a 3" diameter round reflector, Model AR3.
Glass Fiberoptics
Optical Blocks	IR	RED	BLUE	WHITE
Opposed Mode
F4	16in.	1ft.	8in.	5in.
F4 w/lens	20ft. +	20ft. +	12ft.	9ft.
Proximity Mode
F4	7in.	5in.	1in.	1in.
F4 w/lens	1ft.	1ft.	N/A	6in.
Note: Proximity tests utilized a .125" diameter fiber bundle.
Plastic Fiberoptics
Optical Blocks	IR	RED	BLUE	WHITE
Opposed Mode
F5		9in.		2in.
F5 w/lens		6ft.		2ft.
F5 w/right angle lens		3ft.		1ft.
Proximity Mode
F5		7in.		1ft.
F5 w/lens		1ft.		1ft.
Note: Proximity tests utilized a .040" diameter fiber bundle.

Features and Options:

AUTOSET, one button push setup
Remote AUTOSET
ACT, Automatic Contrast Tracking
Action Alert indicator
Three pulse stretchers; 10ms, 25ms, and 50ms
5-LED Contrast Indicator
Cable or quick disconnect
Interchangeable optical blocks
Button lock out
Light On/Dark On automatic select
NPN and PNP output

Benefits:

Easy to use
Reduces downtime
Robust design
High reliability
Lower inventory costs
Tamperproof

LIGHT SOURCE SELECTION

Infrared Light Source
Invisible light – recommended in opaque object sensing applications. Infrared LED light source provides long-range sensing in either Beam Make or Beam Break modes. Infrared light maximizes the sensor’s ability to penetrate contamination found in harsh environments.

Blue Light Source
Useful for detecting translucent, transparent, plastic, or glass objects in the retroreflective mode when using the R4 optical block. Used as blue filter for color perception advantages, i.e. resolving yellow vs. white colored objects or printed registration marks.

Red (Visible) Light Source
Visible red LED light source recommended for sensing transparent/translucent objects. Outperforms infrared light in many moderate to low contrast applications. Also recommended for use with plastic fiberoptic light guides.

White Light Source
(Broadband Color Spectrum)
The “White Light” LED light source promotes easy detection of the largest variety of color marks printed on the largest variety of colored web materials. By combining a white LED light source, our Contrast Indicator, and the one-push AUTOSET setup, you have a winning combination of high performance with an easy to use sensor.

Features and Options:

AUTOSET, one button push setup
Remote AUTOSET
ACT, Automatic Contrast Tracking
Action Alert indicator
Three pulse stretchers; 10ms, 25ms, and 50ms
5-LED Contrast Indicator
Cable or quick disconnect
Interchangeable optical blocks
Button lock out
Light On/Dark On automatic select
NPN and PNP output

Benefits:

Easy to use
Reduces downtime
Robust design
High reliability
Lower inventory costs
Tamperproof

The SMARTEYE^® EZ-PRO^™ gives you a choice of 10 interchangeable optical blocks, making it one of the most versatile sensors on the market today.

Type O4 Proximity	Type R4 Retroreflective	Type F4 Glass Fiberoptics	Type V4 Convergent 1" "V" Axis	Type V4A Apertured
Wide beam optics useful for short-range sensing of transparent, translucent, opaque, or irregular shaped shiny objects.	Very narrow beam optics designed to sense reflectors or reflective materials at long range. Designed for Beam Break sensing.	Adapter for use with a wide variety of glass fiberoptic light guides for both the proximity and opposed sensing modes.	Useable range of 1" to 5".	Useable range of 1".
Type O5 Proximity	Type R5 Polarized Anti-Glare Retroreflective	Type F5 Plastic Fiberoptics	Type V6 Convergent 1.5" "V" Axis	Type V8 Convergent .5" "V" Axis
Narrow beam optics useful in long-range sensing of medium to large size objects.	Polarized to reduce response to “hot spot” glare from shiny surface of detected object. Use with visible light source.	Adapter for use with a wide variety of plastic fiberoptic light guides for both the proximity and opposed sensing modes.	Useable range of 1.5" to 8".	Useable range of .25" to 5" Narrow beam optics useful for sensing small parts. Also useful for proximity sensing to minimize response to reflected light from background objects.
