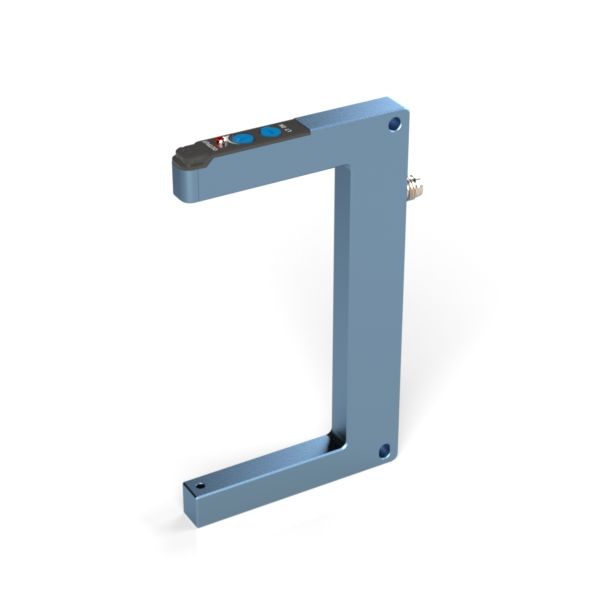

FS100PC

Fork Sensors

FS Fork Sensor

Principle of Optical Operation:

Thru-Beam

Max Sensing Range:

N/A

Light Source:

Red LED

Switching Output:

PNP

Connection:

Connector, 3-pin M8

Catalog Number:

38588

$157.63

Product Description

Accessories

For documentation and other FS Fork Sensor models, please see our FS Fork Sensor Marketing Page.

Technical Features

Model Specific

LED Light Source:

LED, Red = 660nm

Minimum Size Object Detection:

0.030" (0.75mm) at maximum margin (fully clockwise)
0.012" (0.30mm) at minimum allowed margin

Gap Range:

3.937" (100mm)

Output:

150mA output current
Short circuit & transient spike protected
Saturation voltage: < 0.3 Vdc @ 10mA
< 2 Vdc @ 150 mA
PNP

CONNECTIONS:

M8, 3-pin

Family Specific

SUPPLY VOLTAGE & CURRENT:
8-30 Vdc
Current 45mA
Reverse polarity protected
Transient spike protected

POWER-UP DELAY:
300ms. No output pulse on power-up.

RESPONSE TIME:
240µs (120µs repeatability)

ADJUSTMENTS:
Sensitivity
Light/Dark output select

LIGHT IMMUNITY:
High immunity to most ambient light, including high efficiency lighting and high intensity strobes.

LED INDICATORS:
Red output LED. Illuminates when output is “ON”. Blinks to indicate low signal margin.

OPERATING TEMPERATURE:
-20°C to 70°C (-4°F to 158°F)

HOUSING CONSTRUCTION:
10mm wide anodized aluminum housing
Chemical resistant, high-impact ABS & PC Human interface
RX Lens: acrylic
Epoxy encapsulated

RATINGS & CERTIFICATIONS:
IP67
CE
UL pending

Literature

Catalog Pages
Instructions

View File EN
EN

Micro Cable, 3-Pin:
GEC3-6 - 6ft (1.8m) cable GEC3-15 - 15ft (4.6m) cable GEC3-25 - 25ft (7.6m) cable
