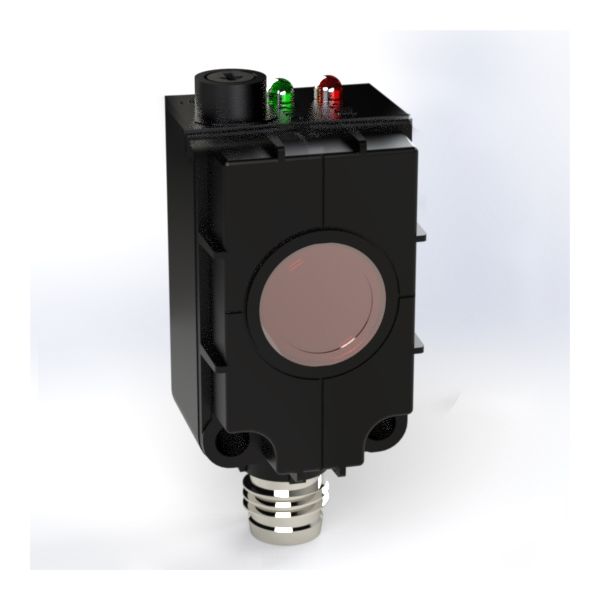

MLRC

Adjustment Type:

• Potentiometer

Connection Type:

• Connector, 4-pin M8

Housing Type:

• Miniature Rectangular

Output Transistors:

• NPN: Sink up to 100mA
• All outputs are continuously short circuit protected

Supply Voltage:

• 10 to 30 VDC
• Polarity Protected

Current Requirements:

• 30mA (exclusive of load)

Remote AUTOSET Input:

• Opto-isolated momentary sinking input (10 milliamps)

Response Time

• Light State response = 600μs (1,100μs, Thru-Beam)
• Dark State response = 600μs (1,100μs, Thru-Beam)

Light/Dark "ON" Operation:

• Light “ON” achieved by connecting white wire to negative lead
• Dark “ON” achieved by connecting white wire to positive lead

Range:

• Dependent on model, see Selection Guidelines Note: 5 VDC models, range reduced by 10%

Hysteresis:

• Approximately 20% of signal

Light Immunity:

• Responds to sensor’s pulse modulated light source, resulting in high immunity to most ambient light, including high intensity strobes

Diagnostic Indicators:

• Red LED = Output Status
• Green LED = Power “ON”

Ambient Temperature:

• -40°C to 70°C (-40°F to 158°F)

Rugged Construction:

• Chemical resistant, high-impact polycarbonate housing
• Waterproof ratings: NEMA 4X, IP66
