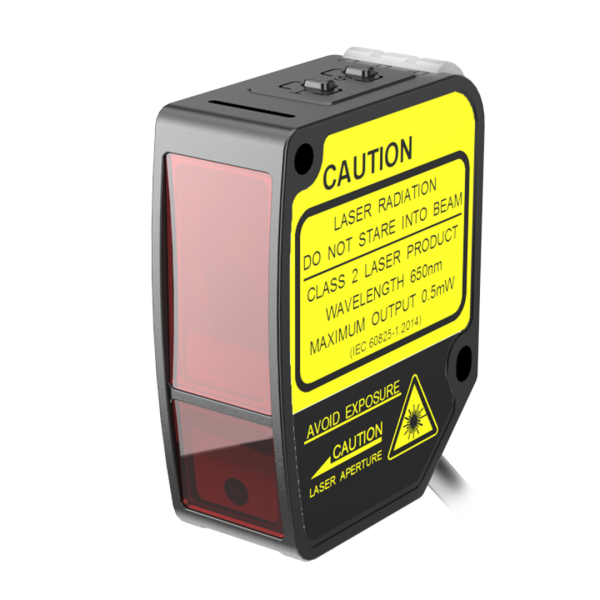

MS-100A
Laser Displacement
MS
Principle of Optical Operation:
Displacement
Max Sensing Range:
850mm
Light Source:
Red Laser
Switching Output:
NPN or PNP
Connection:
Cabled, 6ft
Catalog Number:
40572
$996.41
When Range and Accuracy Matter
The MS-100A is a long-range laser distance measuring sensor with a range of 150mm to 1000mm. This sensor excels in applications requiring extended measurement capabilities, such as quality control and logistics. Its durable design, paired with advanced features like analog and digital outputs, ensures dependable performance and seamless integration into modern industrial systems.
Excellent Distance Measuring Performance
The MS-Series Sensors deliver exceptional distance measurement capabilities, ensuring precise and reliable detection of even the smallest objects. These sensors guarantee accuracy and stability, making them ideal for applications requiring high precision in challenging environments.
Strong Anti-Interference Performance
Designed with advanced EMC characteristics, the MS-Series Sensors are built to withstand electromagnetic and electrostatic interference. This robust feature ensures consistent and accurate measurements, even in electrically noisy industrial settings.
IP67 Dustproof and Waterproof Design
The MS-Series Sensors are constructed with an automatic gluing process, providing superior sealing and durability. With an IP67-rated enclosure, these sensors can withstand immersion in up to 1 meter of water for 30 minutes, making them reliable in complex and harsh working conditions.
Visual OLED Display for Easy Operation
Equipped with a user-friendly operation panel, the MS-Series Sensors simplify setup with dual keys and a high-visibility OLED digital display. This feature allows operators to view test data and make adjustments at a glance, enhancing efficiency and usability.

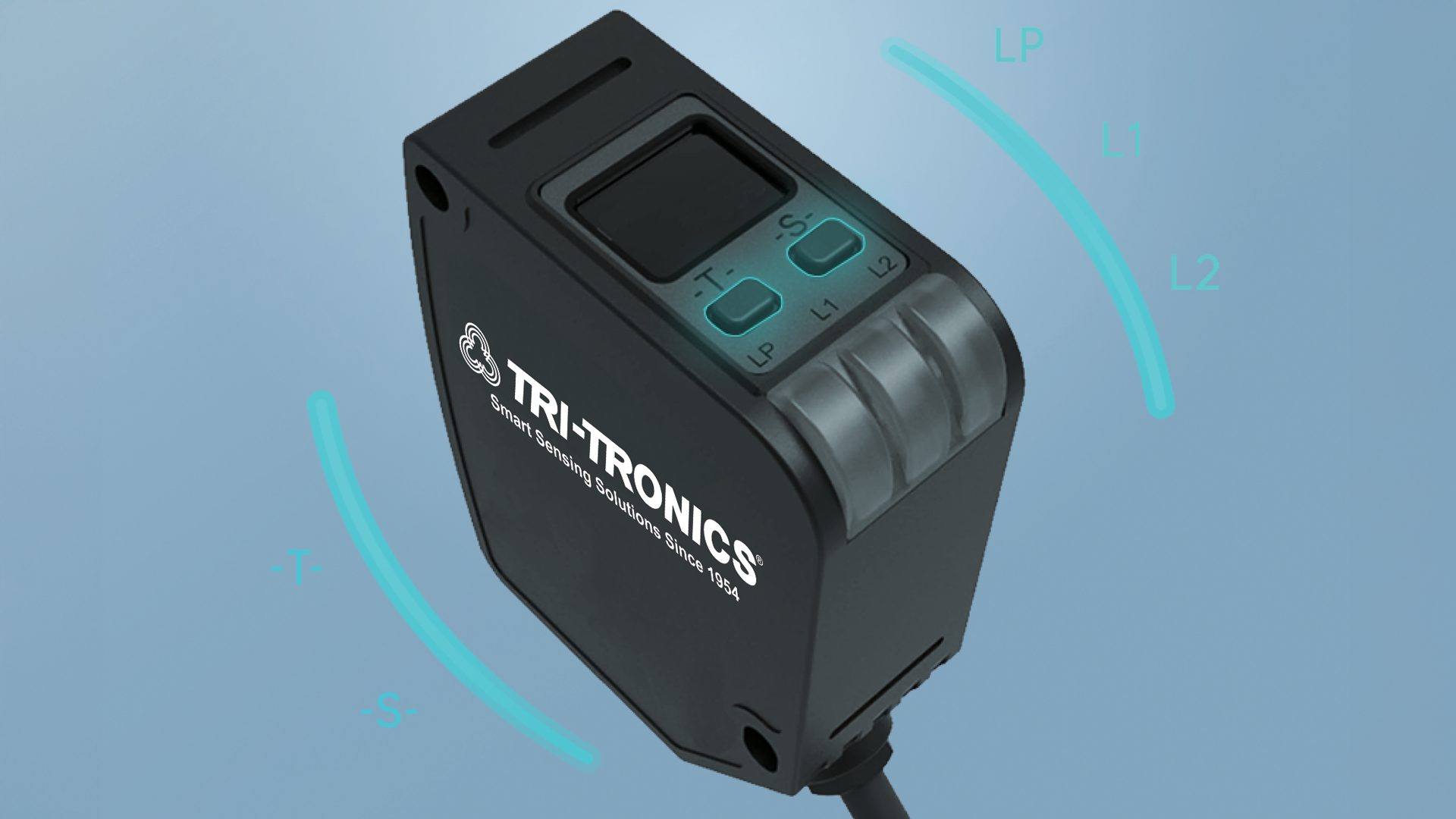

Flexible and Versatile Output Options
The MS-Series offers multiple output configurations, including switch and analog current outputs, RS485 communication, and flexible range settings (10mm, 30mm, 50mm, 70mm, 420mm, and 850mm). This adaptability ensures these sensors meet the diverse needs of modern industrial applications.
Measurement and Control Combined
With a built-in processor design, the MS-Series integrates measurement and control into one compact solution. This streamlined design reduces wiring complexity and saves valuable space, making it a practical choice for space-constrained setups.
Applications
Our sensors have been proven to outperform competing products by orders of magnitude, with output performance measurable in microseconds rather than milliseconds. Imagine the benefits your application could experience with such a significant improvement in sensor performance!
Specifications
Optical
| Property | Value |
|---|---|
| Principle of operation | Laser Displacement |
| Measuring range (mm) | 150...1000 |
| Full range (mm) | 850 |
| Light source | Red Laser |
| Wavelength (nm) | 650 |
Electrical Data
| Property | Value |
|---|---|
| Supply Voltage (V) | 12…24 |
| Current Requirements (mW) | ≤700 |
| Reverse polarity protection | Yes |
Outputs
| Property | Value |
|---|---|
| Output circuit | NPN/PNP |
| Digital Output Current (mA) | 200 |
| Analog Output Current (mA) | 4...20 |
| Output function | NPN/PNP Selectable |
| Response time (ms) | Settable 2,16, and 40 |
| Switching frequency (Hz) | 833 |
| Short circuit protection | Yes |
| Impulse overvoltage protection | Yes |
| Voltage drop max. DC (V) | 2.5 |
Inputs
| Property | Value |
|---|---|
| Input | NPN/PNP |
| Functions | Light/Dark select |
Display / Adjustment
| Property | Value |
|---|---|
| Type of Display | OLED |
| Display Size (mm) | 14 × 10.7 |
| Adjustment Controls | Push Button |
| Indicator Lights | LED |
Mechanical
| Property | Value |
|---|---|
| Dimensions (mm) (W x H x L) | 23 x 65 x 51 |
| Housing Material | ABS |
| Lense Material | PMMA |
Electrical Connection
| Property | Value |
|---|---|
| Type of connection | Flying Leads |
| No. of Leads | 4 |
Operating Conditions
| Property | Value |
|---|---|
| Ambient temperature (°C) | -10 to 50 |
| Degree of protection | IP67 |
Tests / Approvals
| Property | Value |
|---|---|
| Certifications | CE |
| UL Approvals | UL Pending |
Schematics

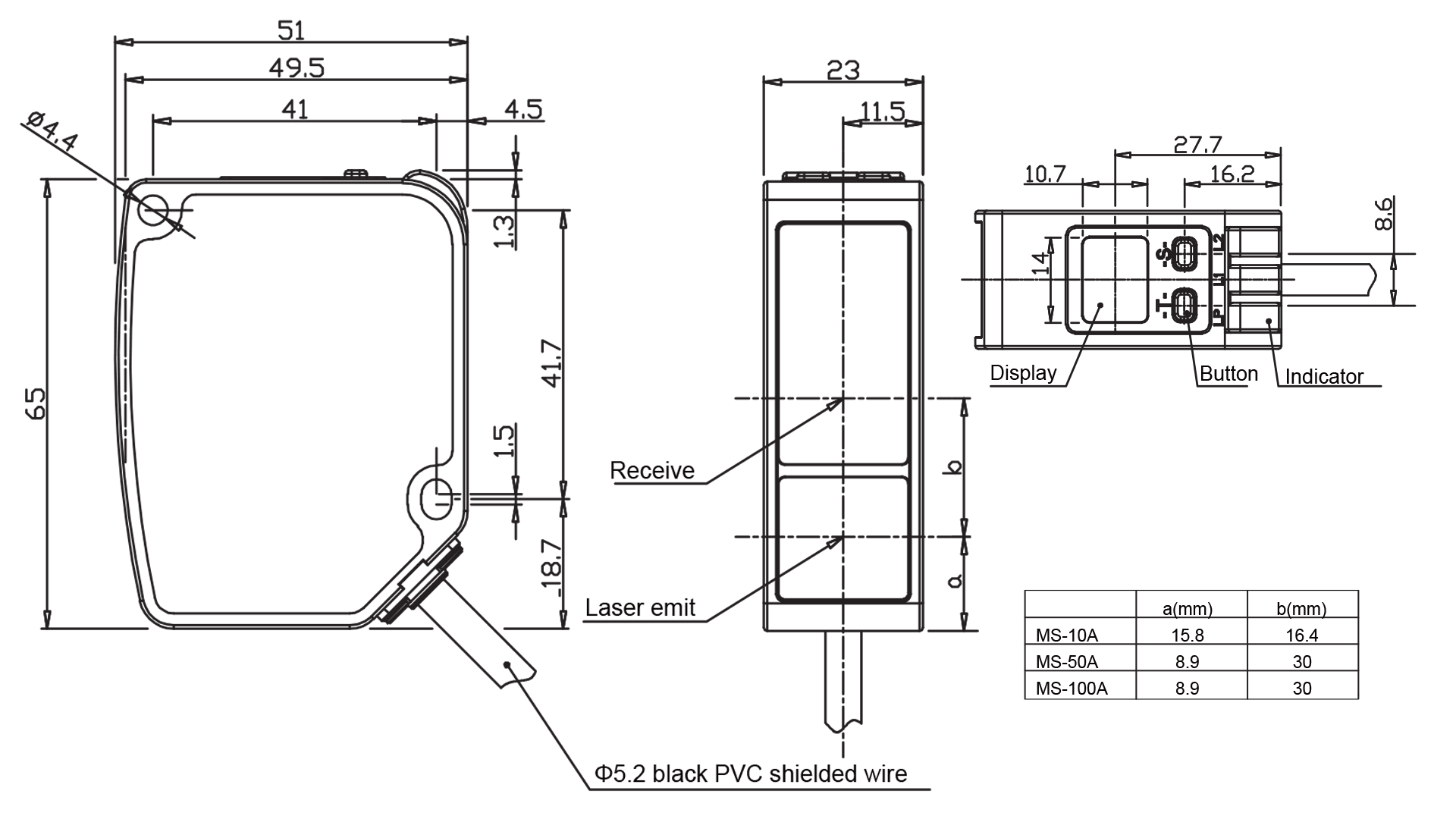

MS-100A Sensor Dimensions

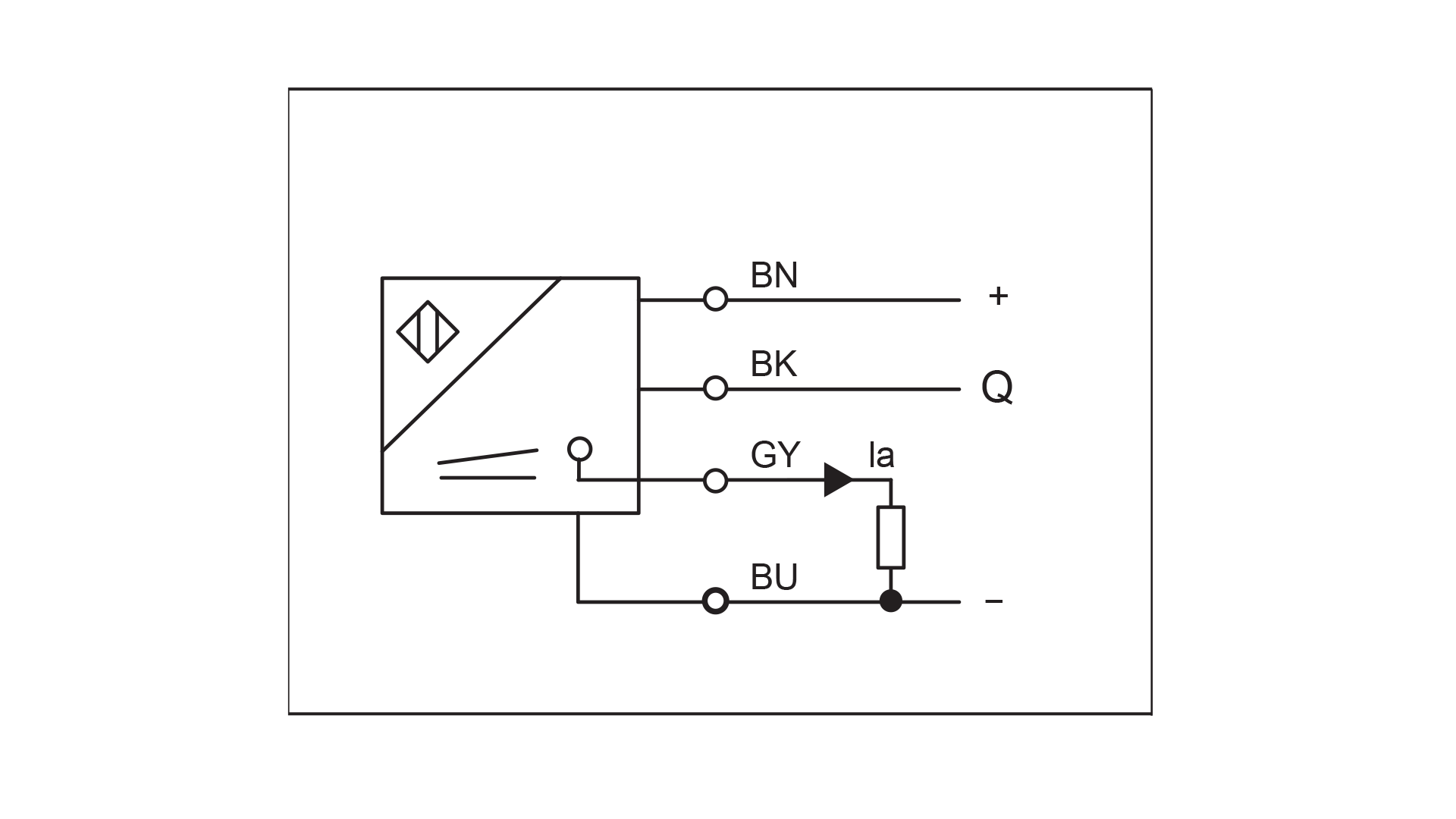

MS-100A Sensor Electrical Diagram
Downloads
For more details and products drawings download literature.
