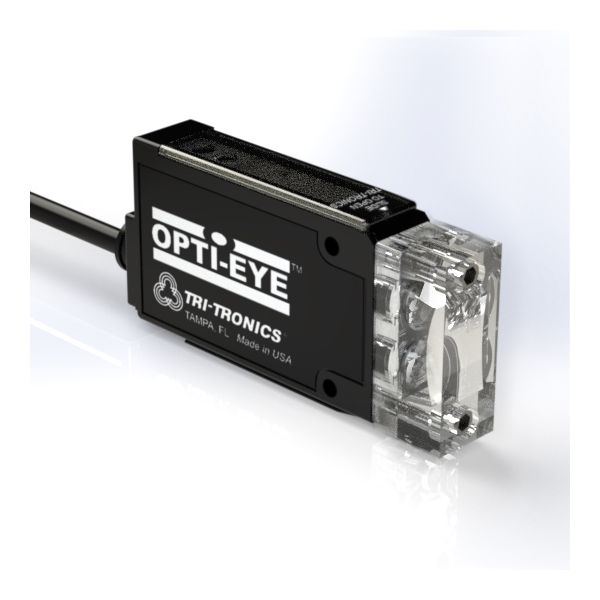

OIV4

Adjustment Type:

• Potentiometer

Connection Type:

• Cabled, 6ft

Housing Type:

• DIN Rail

Optical Block:

• Type V4, Convergent 1" "V" Axis
  Narrow beam optics useful for sensing small parts. Also useful for proximity sensing to minimize response to reflected light from background objects. Useable range of 1".

LED Light Source

• Infrared = 880nm
  Best choice in most opaque object sensing tasks. Provides longest possible sensing range in either Beam Make or Beam Break sensing modes. Best choice in hostile environments; useful in penetrating lens contamination. Preferred for use with small glass fiberoptic light guides Note: Do not use IR light with plastic fiberoptic light guides. Preferred when sensing dark colored objects in the proximity (Beam Make) mode, i.e., black, blue, green, etc. Useful in penetrating containers for verification of contents; also useful in detecting overlapped splices in dense materials. Color perception; tends to favor blue colored objects.

Sensing Range:

• 1 in

Supply Voltage:

• 12 to 24 VDC
• Polarity Protected

Current Requirements:

• 60mA (exclusive of load)

Output Transistors:

• (1) NPN and (1) PNP sensor output transistor:
  NPN: Sink up to 150mA
  PNP: Source up to 150mA
• Momentary short circuit protection
• Outputs protected from pulsing during power up
• Light/Dark switch determines output status:
  LT = Light "ON" Operate
  DK = Dark "ON" Operate

Response Time

• Minimum duration of input event: 500 microseconds

Hysteresis:

• Set for Medium-to-Low contrast application

Light Immunity:

• Responds to sensor's pulse modulated light source - immune to most ambient light

Range Adjustment:

• 15 turn Light Source Intensity control

Ambient Temperature:

• -40°C to 70°C (-40°F to158°F)

Indicators:

• OUTPUT INDICATOR
  RED LED illuminates when the output transistors are in the "ON" state as determined by the Light/Dark switch
• BEAM STATUS INDICATOR
  GREEN LED illuminates when received light level exceeds the sensor's light state switch point
• LIGHT SOURCE INTENSITY INDICATOR
  YELLOW LED illuminates proportionally to the Light Source intensity as determined by the Range adjustment

Rugged Construction:

• Chemical resistant housing
• Waterproof ratings: NEMA 4X, 6P and IP67
• Epoxy encapsulated for mechanical strength
