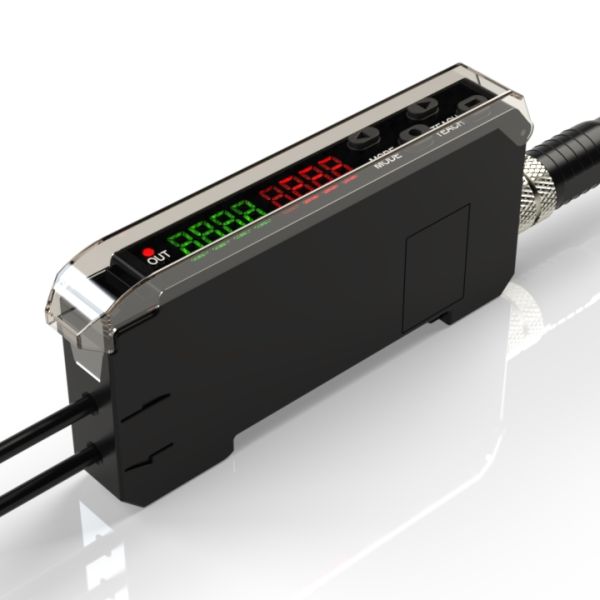

PFSRPC

Light Source:
• Red

Output:
• PNP

Connection:
• M8 3-pin connector

SUPPLY VOLTAGE & CURRENT
• 12-24 Vdc
• 40mA @ 12Vdc
• Reverse polarity protected
• Transient spike protected

OUTPUT
• NPN or PNP (dependent on model)
• 100mA output current
• Short circuit & transient spike protected
• NPN=Saturation voltage: < 0.4Vdc @ 16mA < 1.0Vdc @50mA
• PNP=Saturation voltage: < 1.0Vdc @ 16mA < 2Vdc @100mA

RESPONSE TIME (Dependent on Mode)
• Standard – 1ms
• Long Range – 2ms
• Fast – 300μs
• High Speed – 100μs
Note: High Speed Mode not useful at close range; values over 400 may cause chatter

REPEATABILITY (Dependent on Mode)
• 100μs

MAXIMUM RANGE (RED)

DISPLAY
• Two 4-digit display values:
    threshold (green); signal (red).

LIGHT IMMUNITY
• High immunity to most ambient light, including high efficiency lighting and high intensity strobes.
• 2000lx (sunshine), 1000lx (incandescent)

EMMITTER LIGHT SOURCE
• RED 635nm
• Light source power can be adjusted via button
100%, 50%, 25%, 12%.

LED INDICATORS
• Output: Red LED. Illuminates when output is ON.

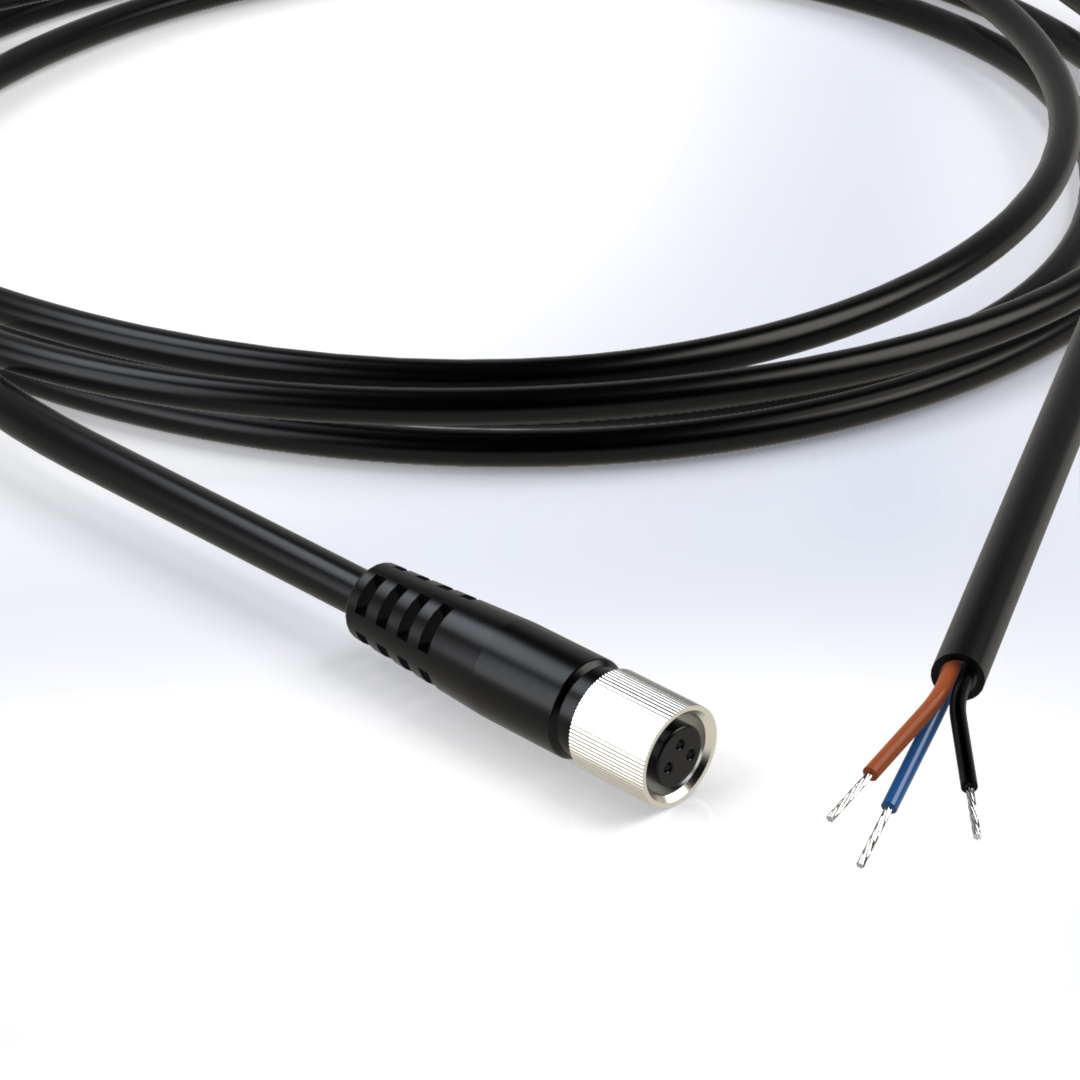

CONNECTIONS
• M8, 3-pin
• Attached cable: 3-wire 6.5ft (2.0m)

OPERATING TEMPERATURE
• -10°C to 50°C (14°F to 122°F) Operational
• -20°C to 70°C (-4°F to 158°F) Storage

HUMIDITY
• 35~85%RH, storage: 35~85%RH

HOUSING CONSTRUCTION
• Chemical resistant, high-impact polycarbonate PC+ABS

RATINGS & CERTIFICATIONS
• IP64
• CE
