The SMARTEYE® PRO™ is a high performance, digital photoelectric multi-mode sensor that can be adjusted by a single push of a button. As a result, there is no guess work on the part of the operator. From that point on, the sensor will automatically maintain a perfect setting, thanks to the dynamic Automatic Contrast Tracking System (ACT). The PRO™ is equipped with a Contrast Indicator as well as an Action Alert diagnostic output signal and visual indicator that allows the operator to visually substantiate performance. When the lock feature is enabled (see advanced features), the PRO™ sensor is tamper-proof. Now, the sensor will provide you with the automatic, hassle-free performance that you expect from a SMARTEYE®. It can either be side mounted or Din rail mounted. Epoxy encapsulated, it is rugged and simple to adjust.

CLS

Features
Specifications
Dimensions
Models & Ranges
Light Source
Optical Blocks
Applications
Downloads

ACT AUTOMATIC CONTRAST TRACKING
ACT automatically adjusts the sensor as conditions change. This can include dirty or damaged lenses or reflectors, damaged fiberoptics, LED light source or thermal drift, and target variations such as position, orientation, or color. It can also compensate for signal shift or deterioration caused by highspeed input events. The SMARTEYE^® PRO continues to operate requiring far less maintenance than other sensors, making it the choice in tough sensing applications.

AGS AUTOMATIC GAIN SELECT
This unique feature provides automatic digital selection of the amplifier gain based upon your application requirements.

QUICKSET ADJUSTMENT
This two-step procedure is easy to perform and requires no expertise whatsoever.

Establish one of the following conditions: Proximity Mode – Reflect light off object. Beam Break – Remove object from light beam path.
Depress the red and green button simultaneously for three seconds.

AUTOSET ADJUSTMENT
The AUTOSET adjustment routine only requires one finger to push one button one time. Even in a dynamic operating condition, with ongoing input events, all you have to do is push a button for a perfect setting.

TIMER
10ms pulse stretcher/off delay.

EDR^® (Pat. No. 5,621,205)
Another unique feature, the EDR^®(Enhanced Dynamic Range) circuit is digitally controlled. It prevents dark state saturation and expands the operating range without reducing amplifier gain.

ACTION ALERT INDICATOR LED
This indicator provides an early warning to prevent marginal performance, when the sensor can no longer provide full contrast deviation as displayed on the Contrast Indicator.

5-LED DUAL FUNCTION INDICATOR

CONTRAST INDICATOR
Provides “at-a-glance” performance data during both setup and operation.

STATUS INDICATOR
Displays status of five selectable functions: Lock, AUTOSET, and Light/Dark, Auto Trac and Timer.

VERSATILITY
Choice of ten “quick change” optical blocks allows use in the proximity, convergent, retroreflective, polarized retroreflective, fiberoptic, or gap sensing modes.

LED LIGHT SOURCES
Choice of four LED light sources – invisible infrared, red, blue, and white light.

CONNECTIONS
Built-in connector for use with quick disconnect cable or shielded 6' (1.80m) cable.

Features

Features and Options:

AUTOSET, one button push setup
ACT, Automatic Contrast Tracking
Action alert output
Pulse stretcher timer - 10ms non-adjustable
5-LED Contrast Indicator
Cable or quick disconnect
Interchangeable optical blocks
Button lock out
NPN and PNP output
Selectable Light State or Dark State AUTOSET

Benefits

Easy to use
Reduces downtime
Robust design
High reliability
Lower inventory costs
Tamper proof

SUPPLY VOLTAGE:
10 to 30 VDC
Polarity Protected

CURRENT REQUIREMENTS:
45 milliamps (exclusive of load)

OUTPUT TRANSISTORS:
(1) NPN and (1) PNP sensor output transistors
(1) PNP Action Alert output transistor
Outputs sink or source up to 150 milliamps (current limit)
Action Alert PNP transistor source up to 75 milliamps
All outputs are continuously short circuit protected

RESPONSE TIME:
Light state response = 300 microseconds
Dark state response = 300 microseconds

LED LIGHT SOURCE:
Options: Infrared= 880nm, Red= 660nm, Blue= 480nm,
White= Broadband spectrum. Pulse Modulated

AMBIENT TEMPERATURE:
-40ºC to 70ºC (-40ºF to 158ºF)

RUGGED CONSTRUCTION:
Chemical resistant high impact polycarbonate housing
Waterproof, NEMA 4X, 6P, and IP67 enclosure rating
Conforms to heavy industry grade CE requirements

DIMENSIONS:
Width: 2.715 in (69.0mm), Height: 1.715 in (43.6mm), Depth: .64 in (16.3mm)

MAXIMUM SENSING RANGE:
Retroreflective: up to 20 ft.
Proximity: up to 3 ft.
Fiberoptic Proximity: up to 7 in.
w/o lens / 1 ft. w/lens
Fiberoptic Opposed Mode: up to 16 in.
w/o lens / 20+ft. w/lens

Features and Options:

AUTOSET, one button push setup
ACT, Automatic Contrast Tracking
Action alert output
Pulse stretcher timer - 10ms non-adjustable
5-LED Contrast Indicator
Cable or quick disconnect
Interchangeable optical blocks
Button lock out
NPN and PNP output
Selectable Light State or Dark State AUTOSET

Benefits

Easy to use
Reduces downtime
Robust design
High reliability
Lower inventory costs
Tamper proof

drawing

Features and Options:

AUTOSET, one button push setup
ACT, Automatic Contrast Tracking
Action alert output
Pulse stretcher timer - 10ms non-adjustable
5-LED Contrast Indicator
Cable or quick disconnect
Interchangeable optical blocks
Button lock out
NPN and PNP output
Selectable Light State or Dark State AUTOSET

Benefits

Easy to use
Reduces downtime
Robust design
High reliability
Lower inventory costs
Tamper proof

1. Select Sensor Type:

SPB - Includes Action Alert

2. Select Sensor LED light source:

I - Infrared
R - Red
B - Blue
WL - White

3. Select connector required

blank - Cabled
C - Connector

3. Select Optical Block based on mode of sensing required:

F4 - Glass Fiberoptics
F5 - Plastic Fiberoptics
O4 - Proximity
O5 - Proximity
R4 - Retroreflective
R5 - Polarized Anti-Glare Retroreflective
V4 - Convergent 1" "V" Axis
V4A - Apertured
V6 - Convergent 1.5" "V" Axis
V8 - Convergent 0.5" "V" Axis

Sensing Range Guidelines

Convergent / Proximity / Retroreflective
Optical Blocks	IR	RED	BLUE	WHITE
V4, V4A	1in.	1in.	1in.	1in.
V6	1.5in.	1.5in.	1.5in.	1.5in.
V8	.5in.	.5in.	.5in.	.5in.
O4	18in.	11in.	4in.	3in.
O5	4ft.	3ft.	1.5ft.	1ft.
R4	20ft. +	18ft. +	6ft.	5ft.
R5	N/A	7ft.	4ft.	3ft.
Note: Proximity tests utilized a 90% reflective with target. Retroreflective tests utilized a 3" diameter round reflector, Model AR3.
Glass Fiberoptics
Optical Blocks	IR	RED	BLUE	WHITE
Opposed Mode
F4	16in.	1ft.	8in.	5in.
F4 w/lens	20ft. +	20ft. +	12ft.	9ft.
Proximity Mode
F4	7in.	5in.	1in.	1in.
F4 w/lens	1ft.	1ft.	N/A	6in.
Note: Proximity tests utilized a .125" diameter fiber bundle.
Plastic Fiberoptics
Optical Blocks	IR	RED	BLUE	WHITE
Opposed Mode
F5		9in.		2in.
F5 w/lens		6ft.		2ft.
F5 w/right angle lens		3ft.		1ft.
Proximity Mode
F5		7in.		1ft.
F5 w/lens		1ft.		1ft.
Note: Proximity tests utilized a .040" diameter fiber bundle.

Features and Options:

AUTOSET, one button push setup
ACT, Automatic Contrast Tracking
Action alert output
Pulse stretcher timer - 10ms non-adjustable
5-LED Contrast Indicator
Cable or quick disconnect
Interchangeable optical blocks
Button lock out
NPN and PNP output
Selectable Light State or Dark State AUTOSET

Benefits

Easy to use
Reduces downtime
Robust design
High reliability
Lower inventory costs
Tamper proof

LIGHT SOURCE SELECTION

Infrared Light Source
Invisible light – recommended in opaque object sensing applications. Infrared LED light source provides long-range sensing in either Beam Make or Beam Break modes. Infrared light maximizes the sensor’s ability to penetrate contamination found in harsh environments.

Blue Light Source
Useful for detecting translucent, transparent, plastic, or glass objects in the retroreflective mode when using the R4 optical block. Used as blue filter for color perception advantages, i.e. resolving yellow vs. white colored objects or printed registration marks.

Red (Visible) Light Source
Visible red LED light source recommended for sensing transparent/translucent objects. Outperforms infrared light in many moderate to low contrast applications. Also recommended for use with plastic fiberoptic light guides.

White Light Source
(Broadband Color Spectrum)
The “White Light” LED light source promotes easy detection of the largest variety of color marks printed on the largest variety of colored web materials. By combining a white LED light source, our Contrast Indicator, and the one-push AUTOSET setup, you have a winning combination of high performance with an easy to use sensor.

Features and Options:

AUTOSET, one button push setup
ACT, Automatic Contrast Tracking
Action alert output
Pulse stretcher timer - 10ms non-adjustable
5-LED Contrast Indicator
Cable or quick disconnect
Interchangeable optical blocks
Button lock out
NPN and PNP output
Selectable Light State or Dark State AUTOSET

Benefits

Easy to use
Reduces downtime
Robust design
High reliability
Lower inventory costs
Tamper proof

Interchangeable optical blocks provide for universal application of the SMARTEYE^® PRO to any sensing application from large object sensing to finite sensing of small parts, registration mark detection, and product inspection tasks.

Type O4 Proximity	Type R4 Retroreflective	Type F4 Glass Fiberoptics	Type V4 Convergent 1" "V" Axis	Type V4A Apertured
Wide beam optics useful for short-range sensing of transparent, translucent, opaque, or irregular shaped shiny objects.	Very narrow beam optics designed to sense reflectors or reflective materials at long range. Designed for Beam Break sensing.	Adapter for use with a wide variety of glass fiberoptic light guides for both the proximity and opposed sensing modes.	Useable range of 1" to 5".	Useable range of 1".

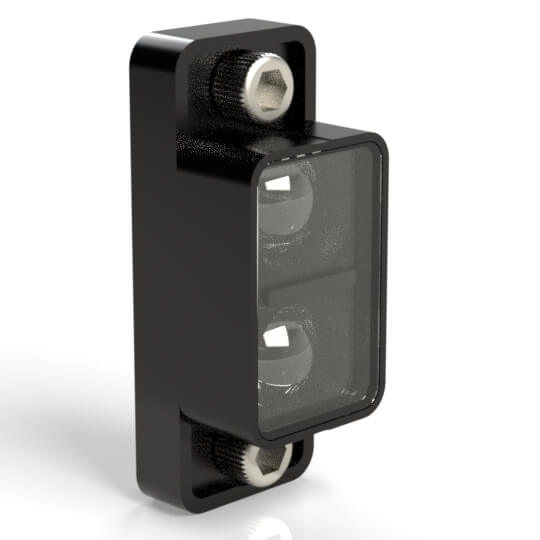

Type O5 Proximity	Type R5 Polarized Anti-Glare Retroreflective	Type F5 Plastic Fiberoptics	Type V6 Convergent 1.5" "V" Axis	Type V8 Convergent .5" "V" Axis
Narrow beam optics useful in long-range sensing of medium to large size objects.	Polarized to reduce response to “hot spot” glare from shiny surface of detected object. Use with visible light source.	Adapter for use with a wide variety of plastic fiberoptic light guides for both the proximity and opposed sensing modes.	Useable range of 1.5" to 8".	Useable range of .25" to 5" Narrow beam optics useful for sensing small parts. Also useful for proximity sensing to minimize response to reflected light from background objects.
