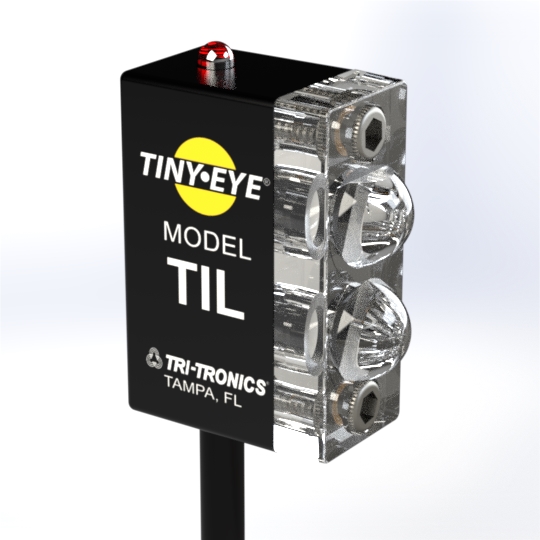

TINY•EYE^®photoelectric sensor that fills the need for a "low cost" miniature sensor with the flexibility to perform a multitude of industrial sensing tasks. "Quick-change" optical block lenses allow the sensor to be used for proximity, convergent, retroreflective, polarized retroreflective and fiber optic sensing. A light-source and receiver combination is available for opposed sensing.

TINY-EYE

Features
Specifications
Dimensions
Models & Ranges
Light Source
Optical Blocks
Applications
Downloads

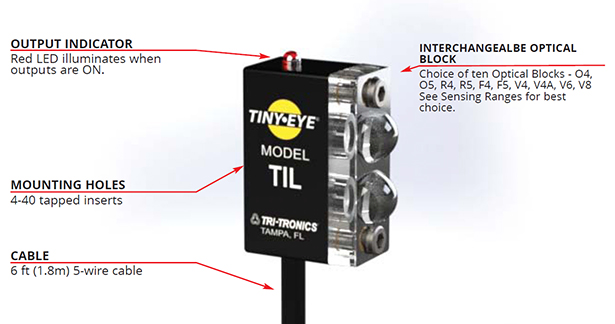

COMPACT
Small and compact allows for installation in the most mechanically demanding applications. The rugged case is molded of high-impact polycarbonate.

NO ADJUSTING
Since there is no adjustment there is no need to access the sensor at the sensing sight.

REMOTE ADJUST
Providing a wire for making adjustment in the three modes... High, Medium, and Low range... enables the sensor to be adjusted from a remote location.

VERSATILITY
Choice of ten “quick change” optical blocks allows one sensor to be used in proximity, convergent, retroreflective, polarized retroreflective, and fiberoptic applications.

LED LIGHT SOURCES
Choice of two LED light sources — infrared and red.

OUTPUT INDICATOR
Illuminates when output is on.

Features

Features and Options:

500 microsecond Speed of Response
10 to 30 VDC Operating Voltage (5 VDC Operating Voltage available Consult Factory)
Pulse Modulated
Reverse Polarity Protected
Both NPN and PNP Outputs
Red or Infrared Light Sources
Step-Function Remote Sensitivity Adjustment
Rugged and Waterproof

Benefits:

Lower inventory costs
Reduce maintenance costs
Improve machine throughput
Flexible and affordable

SUPPLY VOLTAGE:

10 to 30 VDC Polarity Protected (5 VDC models available)

CURRENT REQUIREMENTS:

Sensors 35 milliamps
Receivers 15 milliamps
Light Source 20 milliamps

OUTPUT TRANSISTORS:

NPN (sink up to 100 milliamps)
PNP (source up to 100 milliamps) short circuit protected
Outputs protected from pulsing during power up

RESPONSE TIME:

500 microseconds

AMBIENT TEMPERATURE:

-30ºC to 70ºC (-22ºF to 158ºF)

RUGGED CONSTRUCTION:

Chemical Resistant Housing, Epoxy Encapsulated, Dirt and Moisture Sealed

DIMENSIONS:

Width: .60 in (15.2mm)
Height: 1.20 in (30.5mm)
Depth: .48 in (12.2mm)

MAXIMUM SENSING RANGE:

Retroreflective: up to 20 ft.
Proximity: up to 18 in.
Fiberoptic Proximity:
- 1.55 in. without lens
- 8 in. with lens.
Fiberoptic Opposed Mode:
- 6 in. without lens
- 15 ft. with lens.

Features and Options:

500 microsecond Speed of Response
10 to 30 VDC Operating Voltage (5 VDC Operating Voltage available Consult Factory)
Pulse Modulated
Reverse Polarity Protected
Both NPN and PNP Outputs
Red or Infrared Light Sources
Step-Function Remote Sensitivity Adjustment
Rugged and Waterproof

Benefits:

Lower inventory costs
Reduce maintenance costs
Improve machine throughput
Flexible and affordable

Connections - Sensor Models

wiring

Connections - Light Source/Receiver Models

wiring

Connections - All Models

wiring

Features and Options:

500 microsecond Speed of Response
10 to 30 VDC Operating Voltage (5 VDC Operating Voltage available Consult Factory)
Pulse Modulated
Reverse Polarity Protected
Both NPN and PNP Outputs
Red or Infrared Light Sources
Step-Function Remote Sensitivity Adjustment
Rugged and Waterproof

Benefits:

Lower inventory costs
Reduce maintenance costs
Improve machine throughput
Flexible and affordable

Thru-Beam Light Source Receiver Models

1. Select Light Source model based on light source required:

STIT4 - Infrared Light Source
STRT4 - Red Light Source

2. Select Receiver Model based on light source required:

RTLT4 - Light-On Receiver
RTDT4 - Dark-On Receiver

Sensor Models

1. Select Sensor Model based on light source required:

TI - Infrared Light Source
TR - Red Light Source

2. Select Dark/Light Output:

D - Dark-On Output
L - Light-On Output

3. Select Operational Voltage:

Blank - 10 to 30 VDC
5 - 5 VDC

4. Select Optical Block based on Mode of operation.

Sensing Range Guidelines

Optical Block Type	TIL/TID (Infrared)	TRL/TRD (Red)
O4 Proximity	2in.	1.5in.
O5 Proximity	18in.	16in.
R4 Retroreflective	20ft.	20ft.
R5 Polarized Retroreflective	N/A	7ft.
V4, V4A Convergent	1in.	1in.
V6 Convergent	1.5in.	1.5in.
V8 Convergent	0.5in.	0.5in.
Type F4 with .125in. diam. Glass Fiberoptic Bundle
Proximity	1.5in.	1in.
Proximity w/Lens	8in.	6in.
Opposed	6in.	3in.
Opposed w/Lens	18ft.	15ft.
Type F5 with .040in. diam. Plastic Fiberoptics
Proximity	N/A	0.5in.
Opposed	N/A	2in.
Opposed w/Lens	N/A	4ft.
Type T4 Opposed Mode
Light Source	Receiver	Max Range
STIT4	RTLT4	25ft.
STIT4	RTDT4	25ft.
STRT4	RTLT4	20ft.
STRT4	RTDT4	20ft.
PROXIMITY tests utilizes a 90% reflective white target. RETROREFLECTIVE tests utilizes a 3½ diam. round reflector Model AR-3. *Maximum ranges at 24 VDC. (Varies with supply voltage)

Features and Options:

500 microsecond Speed of Response
10 to 30 VDC Operating Voltage (5 VDC Operating Voltage available Consult Factory)
Pulse Modulated
Reverse Polarity Protected
Both NPN and PNP Outputs
Red or Infrared Light Sources
Step-Function Remote Sensitivity Adjustment
Rugged and Waterproof

Benefits:

Lower inventory costs
Reduce maintenance costs
Improve machine throughput
Flexible and affordable

LIGHT SOURCE SELECTION

Infrared Light Source
Invisible light – recommended in opaque object sensing applications. Infrared LED light source provides long-range sensing in either Beam Make or Beam Break modes. Infrared light maximizes the sensor’s ability to penetrate contamination found in harsh environments.

High Intensity Red
Recommended for long-range proximity sensing and for use with plastic fiberoptic light guides.

Features and Options:

500 microsecond Speed of Response
10 to 30 VDC Operating Voltage (5 VDC Operating Voltage available Consult Factory)
Pulse Modulated
Reverse Polarity Protected
Both NPN and PNP Outputs
Red or Infrared Light Sources
Step-Function Remote Sensitivity Adjustment
Rugged and Waterproof

Benefits:

Lower inventory costs
Reduce maintenance costs
Improve machine throughput
Flexible and affordable

Interchangeable optical blocks provide for universal application of the TINY•EYE^® to any sensing applications from large object sensing to finite sensing of small parts, and product inspection tasks.

Type O4 Proximity	Type R4 Retroreflective	Type F4 Glass Fiberoptics	Type V4 Convergent 1" "V" Axis	Type V4A Apertured
Wide beam optics useful for short-range sensing of transparent, translucent, opaque, or irregular shaped shiny objects.	Very narrow beam optics designed to sense reflectors or reflective materials at long range. Designed for Beam Break sensing.	Adapter for use with a wide variety of glass fiberoptic light guides for both the proximity and opposed sensing modes.	Useable range of 1" to 5".	Useable range of 1".
Type O5 Proximity	Type R5 Polarized Anti-Glare Retroreflective	Type F5 Plastic Fiberoptics	Type V6 Convergent 1.5" "V" Axis	Type V8 Convergent .5" "V" Axis
Narrow beam optics useful in long-range sensing of medium to large size objects.	Polarized to reduce response to “hot spot” glare from shiny surface of detected object. Use with visible light source.	Adapter for use with a wide variety of plastic fiberoptic light guides for both the proximity and opposed sensing modes.	Useable range of 1.5" to 8".	Useable range of .25" to 5" Narrow beam optics useful for sensing small parts. Also useful for proximity sensing to minimize response to reflected light from background objects.

Type T4

Opposed

Uses seperate Light Source/Receiver.
Designed for long-range sensing.

Features and Options:

500 microsecond Speed of Response
10 to 30 VDC Operating Voltage (5 VDC Operating Voltage available Consult Factory)
Pulse Modulated
Reverse Polarity Protected
Both NPN and PNP Outputs
Red or Infrared Light Sources
Step-Function Remote Sensitivity Adjustment
Rugged and Waterproof

Benefits:

Lower inventory costs
Reduce maintenance costs
Improve machine throughput
Flexible and affordable

Applications:

application
Limited Space

application
Small Parts Detection

application
Opaque Objects

Features and Options:

500 microsecond Speed of Response
10 to 30 VDC Operating Voltage (5 VDC Operating Voltage available Consult Factory)
Pulse Modulated
Reverse Polarity Protected
Both NPN and PNP Outputs
Red or Infrared Light Sources
Step-Function Remote Sensitivity Adjustment
Rugged and Waterproof

Benefits:

Lower inventory costs
Reduce maintenance costs
Improve machine throughput
Flexible and affordable
